 Winchester X-150 Accuracy Improver. -AWESOME!

Go down
AuthorMessage
FrontierGander
Forum
Forum
avatar

Male Number of posts : 15276
Age : 34
Location : Boncarbo,Colorado
Registration date : 2008-05-19

PostSubject: Winchester X-150 Accuracy Improver. -AWESOME!   June 4th 2008, 1:26 am

For about 4 years i owned a Winchester X-150 50cal inline muzzleloader and that muzzleloader could do amazing things after i free floated the barrel.

If you have one of these rifles or even a cva magbolt,hunterbolt, or even a bolt action muzzleloader, this should easily help improve your accuracy.

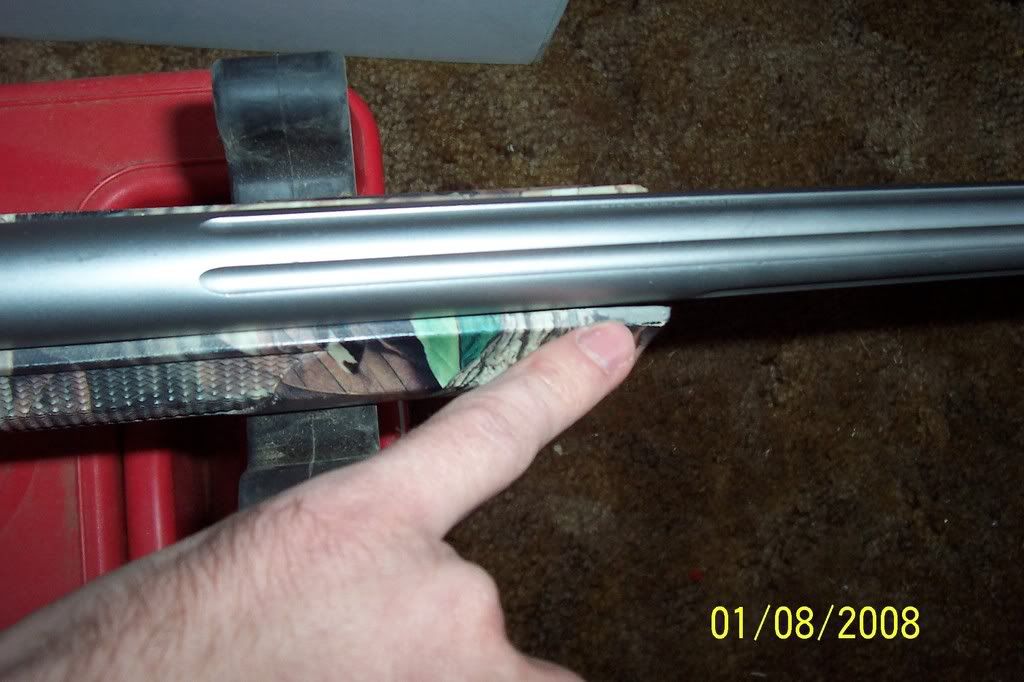

First off, Take your rifle, have either a roll of scotch tape or a black magic marker " Removes easily with windex" Look along the sides of the barrel and mark ALL material thats touching up against the sides of the barrel. All material that touches the barrel needs to be removed all the way up the the first barrel lug.

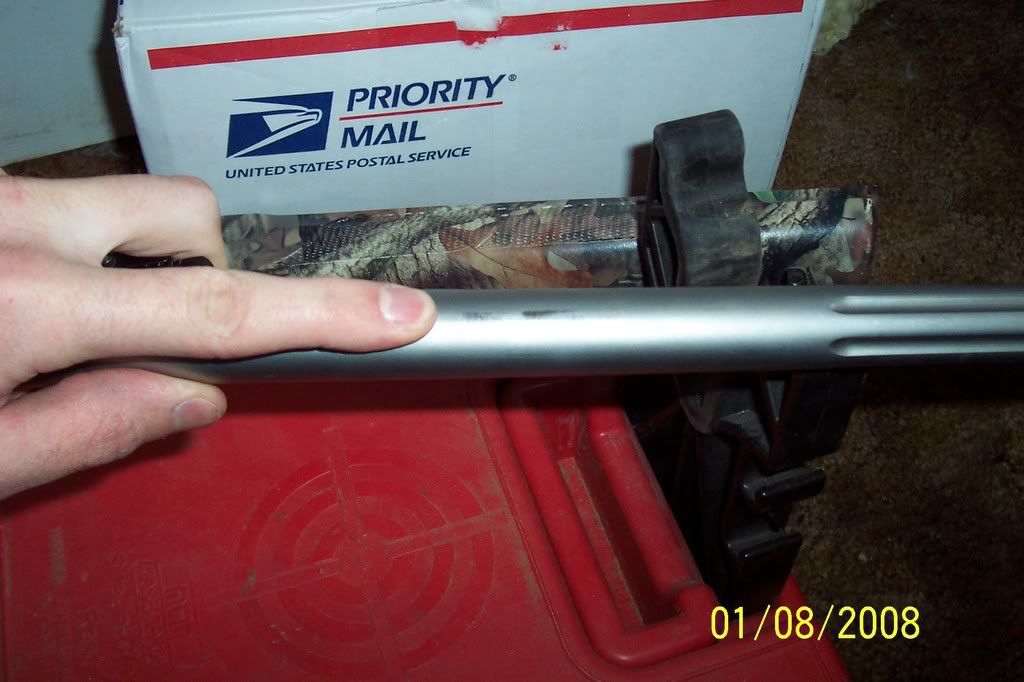

Once you've marked the areas that need to be taken down, Remove your barrel. look along your barrel for shiney markings. This is caused by the stock material rubbing up against the barrel. By removing this excess material, You'll remove the pressure thats pushing up against the barrel that leaves these ugly marks.


Black area is the paint/material that i removed. Its better to remove the material evenly so you have a nice clean gap alone the side of the barrel. It doesnt take much filing at all to get the built up material off. Go slowly so it looks clean.


Pictured below is what i'll call "barrel supports" From the factory, the barrel is pressed up against on these and just sits on them. File these down! These cause nothing but headaches and are of no use. On these, you'll need to take off around the thickness of a penny.

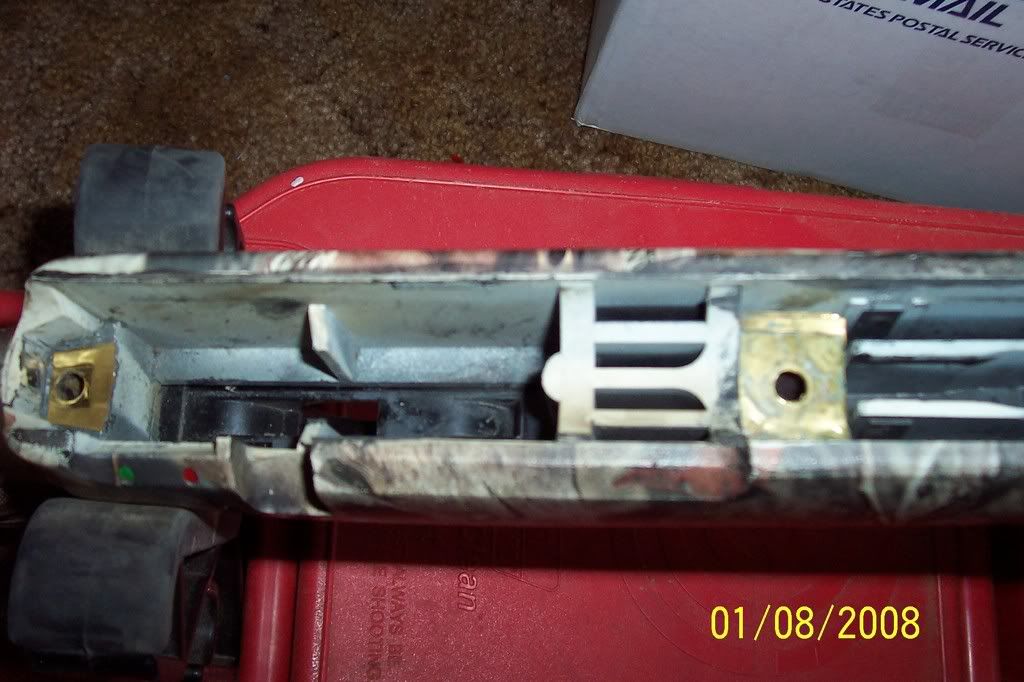

Rear Barrel Lug: Does yours have a Square imprint of the barrel lug? If so, You'll need to buy a little JB weld, Mix it up good, And use a tiny screw driver and just carefully filly that square impression and around the entire area. I like to do the entire area as pictured for extra support. If you do not fix this area, The barrel lug will continue to eat into the stock and will case your groups to be in a vertical line.
Dont worry about closing up the hole. You can always use a drill bit and clean it up. You dont need to build it up alot, Just get it flush with the original stock material.
Use a knife to rough up the area so the jb weld has something to grab on to and hold.



Next i simply used a Soda can and used the aluminum as my shimming material, works perfect! Use scissors and cut the shims out to fit tightly into the lug area and use a small dab of rubber cement in each corner to hold them in place.

I use 1 shim in the rear, and 2 shims up front. Remember that the JB weld will take up a little room and depends on how thick you put the jb weld on.
Cut out more shims than you'll need.
Pictured below is engine bearing shim i originally used, This did not hold up no where near as good as the soda can, but was all i had at the time.




Once you get the stock filed, JB welded, <--- let the JB weld dry for atleast 2 days to insure its properly dry.
Take the barrel and place it into the stock with NO shims. Grab a piece of paper and slide it down between the stock and barrel, Take note of tight areas. If the paper does not slide down, Remove the stock, Add One shim to the front and rear lugs. Redo paper test. It should take between 2-3 shims on the front lug and 1-2 shim in the rear. Do NOT crank down hard on the lug bolts, These only need to be snug.


Don't let all this scare you off, Its very simple to do and just requires a little time and very little work.

Keep it simple and start off with marking the areas where material is touching.

Finished result was a Winchester X-150 .50cal that went from shooting 2 1/2" groups with 385 grain Hornady great plains, to a common 5/8" group @ 100 yards with open sights.
Pictured below is the last target i shot with 90 grains pyrodex p and a 410 grain Great plains conical @ 100 yards and truglo fiberoptic sights.


Back to top Go down
View user profile https://www.frontiermuzzleloading.com Online
NimrodRx



Number of posts : 2
Registration date : 2008-06-18

PostSubject: Re: Winchester X-150 Accuracy Improver. -AWESOME!   June 18th 2008, 11:26 pm

EXCELLENT post.

Well done!
Back to top Go down
View user profile
mideerslayer



Number of posts : 1
Registration date : 2008-07-21

PostSubject: Re: Winchester X-150 Accuracy Improver. -AWESOME!   July 21st 2008, 5:08 pm

Is this what they call free floating?
Back to top Go down
View user profile
FrontierGander
Forum
Forum
avatar

Male Number of posts : 15276
Age : 34
Location : Boncarbo,Colorado
Registration date : 2008-05-19

PostSubject: Re: Winchester X-150 Accuracy Improver. -AWESOME!   July 21st 2008, 5:18 pm

Yep, Only the winchester stocks do not need the forearm bedded to prevent flexing. The winchester brand and now the new cva bra use solid stocks to beef them up and not have to deal with the cheap flexy stocks that the other brands use.
Back to top Go down
View user profile https://www.frontiermuzzleloading.com Online
Marty
Site Moderator &
Site Moderator &
avatar

Male Number of posts : 3432
Age : 62
Location : Massachusetts
Registration date : 2009-02-03

PostSubject: .45 CVA Hunterbolt... barrel FREE-FLOATED   August 20th 2009, 7:27 am

My .45 Hunterbolt was due for take-apart, clean & touch-up job. I had free-floated this smokegun a few years ago and thought I’d post a visual since it's held up well. I too used JB Weld and thin aluminum sheeting. The aluminum sheeting beneath the barrel helps to maintain firm barrel-to-stock contact just forward of the anchor bolt. I also used a thin piece of aluminum sheeting to make a dam to hold the JB Weld in place as it dried. Since the Hunterbolt only has one anchor screw, the JB creates a reinforced base where the barrel receives the anchor bolt through the stock. This reinforcement will help to maintain consistent barrel-to-stock clearance when free-floated.

The inside of the stock forearm(forward of the aluminum sheeting) which once made contact with the barrel was trimmed with a dremel tool stone-grinder to remove just enough stock material to free-float the barrel. When a piece of paper can slide beneath the barrel it's free-floated.

NOTE: The active portion of the inside bore from the breech plug to muzzle end for the .45 Hunterbolt is about 24 inches. About 22 inches of the barrel is free-floated.





Last edited by Marty on August 23rd 2009, 3:17 pm; edited 2 times in total (Reason for editing : added NOTE on active portion of bore)
Back to top Go down
View user profile
FrontierGander
Forum
Forum
avatar

Male Number of posts : 15276
Age : 34
Location : Boncarbo,Colorado
Registration date : 2008-05-19

PostSubject: Re: Winchester X-150 Accuracy Improver. -AWESOME!   August 23rd 2009, 6:04 pm

That JB Weld surrounding the lug block is beautiful! How the heck did you pour it into there so nicely?
Back to top Go down
View user profile https://www.frontiermuzzleloading.com Online
Marty
Site Moderator &
Site Moderator &
avatar

Male Number of posts : 3432
Age : 62
Location : Massachusetts
Registration date : 2009-02-03

PostSubject: trick to pouring JB Weld...   August 23rd 2009, 7:03 pm

There is a little trick I found to pouring the JB into tight spots.

[img][/img]

I first thoroughly mix the JB Weld in a deep container using the flat end of a small wooden dowel. I then use the pointed end to scoop into the mixed JB and let it slowly dribble-off the tip. Depending on the consistency of your mix you can usually rotate the dowel to keep the JB flowing evenly off the tip in 1/8 inch strips.

You also want to have everything ready to go and lined-up so that you can begin dribbling-off the JB as soon as its mixed.
Back to top Go down
View user profile
FrontierGander
Forum
Forum
avatar

Male Number of posts : 15276
Age : 34
Location : Boncarbo,Colorado
Registration date : 2008-05-19

PostSubject: Re: Winchester X-150 Accuracy Improver. -AWESOME!   August 23rd 2009, 7:09 pm

Excellent! Thanks for the tip.
Back to top Go down
View user profile https://www.frontiermuzzleloading.com Online
Mal001



Number of posts : 4
Age : 50
Location : USA
Registration date : 2009-10-01

PostSubject: Re: Winchester X-150 Accuracy Improver. -AWESOME!   October 1st 2009, 6:25 pm

And the above X-150 still shoots Sub-MOA with the 385 Great Plains.. But, now has a peep sight..... cheers
Back to top Go down
View user profile
ceader savage



Number of posts : 252
Age : 71
Location : owosso mi.
Registration date : 2009-06-06

PostSubject: Re: Winchester X-150 Accuracy Improver. -AWESOME!   July 12th 2017, 5:17 pm

GREAT PIECE OF ADVICE THANKS
